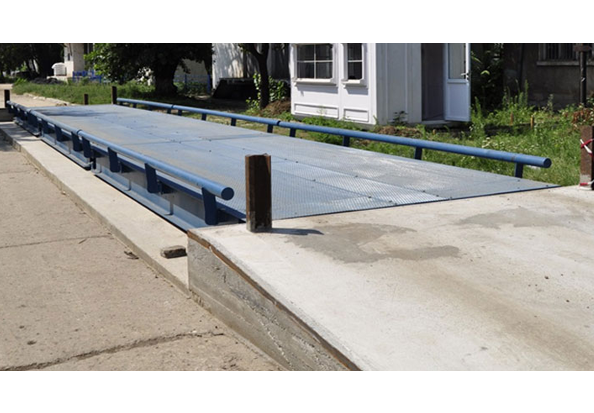

Modular Weighbridge

These weighbridges can be easily dismantled and re-erected in a new location in a Short span of time. Transportation of the modules can be arranged through a normal Truck.


Weighbridges are modular type. Hence they have the advantage of future up-gradations by simply adding a module or two to have a longer platform. This is not possible in conventional type of weighbridges.


Conventional type weighbridge has 2 main longitudinal members. Whereas the modular type weighbridge has 4 main longitudinal members. Structure is more strong, yet sleek.


Weighbridges are fitted with load cells which supports the structure through a special arrangement. This ensures the structure swings in order to avoid the shock loading transferred directly to the load cell, on a dynamic force created by a moving truck over the platform and thereby load cell accuracy is sustained for a longer period.


In weighbridges, the chances of getting rusted is less as the modules are seamlessly welded and rain water and slush cannot find their way to the under chassis of the weighbridge which will definitely reduce the maintenance cost.


Weighbridge is modular in structure, fully welded and strong to take care of the designated load. The loose parts such as girders, plates and transoms in a conventional weighbridge and the main girders in a surface mounted type have a relative movement due to cyclic loading of truck weighing, though they are held by fasteners. In the long run, this effect leads to wear and tear of the parts and the same need replacement. Weighbridge comprises of modules which are fully welded and have no loose parts, hence the effect of cyclic loading does not cause any problem and thereby keeping y maintenance cost to a minimum.


Features of Modular Weighbridge

High Strength

Good for Accuracy

Low Maintenance

Facility to upgrade further
